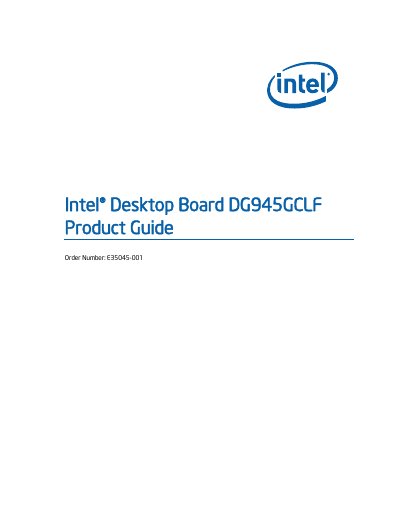

Introduces the features and characteristics of the Intel® Desktop Board DG945GCLF product
This Product Guide is intended for technically qualified personnel who need to install, configure, and maintain the Intel DG945GCLF desktop board. It covers board layout, component installation, BIOS updates, and safety regulations.
The guide is organized into sections on board features, component installation, BIOS configuration, error messages, and regulatory compliance, with detailed tables, figures, and part numbers to assist system integrators and service technicians.
| Form Factor | Mini-ITX |
|---|---|
| Processor | Intel Atom 230 |
| Maximum System Memory | 2 GB DDR2 |
| Chipset | Intel 945GC Express |
| Audio Codec | RealTek ALC662 |
| PCI Slots | 1 x PCI |
| USB 2.0 Ports | 6 (4 rear, 2 via header) |
| IDE Interface | ATA‑100/66 (2 devices) |
| Serial ATA Ports | 2 x SATA 3.0 Gb/s |
| VGA Connector | 1 |
| Parallel Port | 1 |
| Serial Port | 1 |
| PS/2 Ports | Keyboard and mouse |
| LAN | 10/100 Mb/s |
| Power Management | ACPI support |
It uses the Mini‑ITX form factor.
The board provides up to six USB 2.0 ports, four on the rear panel and two via an internal header.
The board supports the Intel Atom processor 230.
It complies with FCC Class B (Part 15), Canadian ICES‑003, EU EN55022/EN55024, and other international EMC standards.
