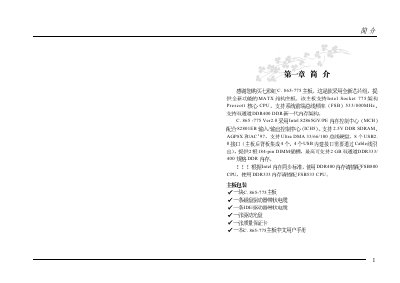

This manual describes the C.865-775 MATX motherboard, its supported Intel Socket 775 processors, chipset details, memory types, and expansion slots. It includes information on power connections, BIOS configuration, and peripheral interfaces.
Key sections cover CPU and memory specifications, chipset features, connector pin‑outs, BIOS setup procedures, and troubleshooting tips, helping users install and configure the board correctly. This manual is written in Chinese.
| Form factor | MATX 221 mm × 244 mm |
|---|---|
| CPU socket | Intel Socket 775 |
| Supported CPUs | Prescott, Pentium D, Pentium 4, Celeron D |
| Chipset | Intel 82865GV/PE |
| Memory type | DDR333/DDR400 SDRAM |
| Maximum memory | 2 GB |
| USB ports | 8 × USB 2.0 |
It supports Intel Socket 775 processors, including Prescott, Pentium D, Pentium 4 and Celeron D.
The board provides eight USB 2.0 ports.
