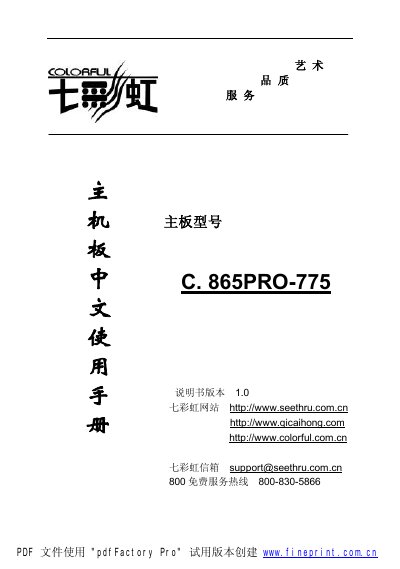

This document introduces the specifications and features of the Colorful C.865PRO-775 motherboard, including the processor, chipset, memory, AGP interface, AC'97 Codec controller, network card, BIOS, super I/O function, expansion slots, and power management. It also includes hardware installation steps, driver installation instructions, and BIOS settings.
The manual provides a complete overview of the Colorful C.865PRO-775 ATX motherboard, including its architecture, supported processors, memory configurations, and integrated features such as AC'97 audio and RealTek networking. Detailed sections describe BIOS options, power management, expansion slots, and connector layouts.
Additional chapters guide users through hardware installation steps, jumper settings, and driver installation procedures, with troubleshooting tips and technical support contacts included at the end of the document. This manual is written in Chinese.
| Supported CPU | Intel Pentium HT (Hyper‑Threading) 3.2 GHz and above |
|---|---|
| CPU Socket | Intel Socket 775 (Prescott core) |
| Front Side Bus | 533 MHz / 800 MHz |
| Memory Type & Capacity | 2.5 V DDR SDRAM (DDR200/266/333/400), up to 4 GB dual‑channel |
| Network Controller | RealTek RTL8100C, 10/100 Mbps |
| Audio Codec | Integrated AC'97, six‑channel sound |
It supports Intel Pentium HT (Hyper‑Threading) CPUs of 3.2 GHz and above, as well as Intel Socket 775 Prescott core Pentium 4 and Celeron D processors.
It supports 2.5 V DDR SDRAM (DDR200/266/333/400) in four 184‑pin DIMM slots, up to a total of 4 GB in dual‑channel mode.
The motherboard uses a RealTek RTL8100C Ethernet controller, offering 10 Mbps/100 Mbps connectivity.
