This document provides information on the hardware installation, driver installation instructions, BIOS settings, and features of the C.N78H X5 Ver1.6 motherboard by Colorful. It also includes specifications and features of the motherboard.

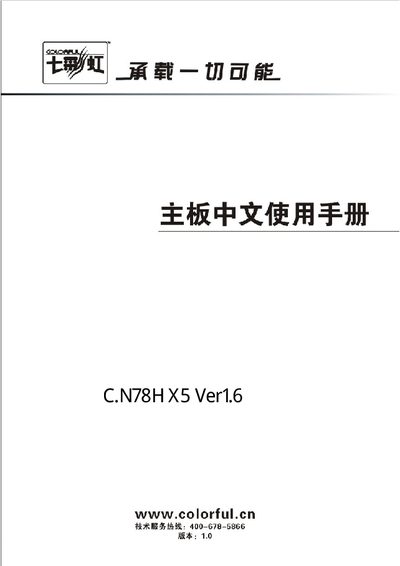

This manual guides users through the setup of the Colorful C.N78HX5 Ver1.6 ATX motherboard, covering unpacking, hardware installation, driver installation and BIOS settings. It also includes a parts list, layout diagram and appendix with technical references.
Key features of the board include an NVIDIA MCP78H chipset, support for AMD Socket AM2/AM2+ CPUs, up to DDR2‑1066 memory on four DIMM slots, multiple expansion slots (PCI‑Express x16, x1 and PCI), integrated 10/100/1000 Mbps Ethernet, HDMI/DVI/VGA video outputs and an 8‑channel audio codec. This manual is written in Chinese.
| Chipset | NVIDIA MCP78H |
|---|---|
| Network | Integrated 10/100/1000 Mbps Ethernet |
| Audio | 8‑channel audio codec |
| Video Outputs | HDMI, DVI/VGA, SPDIF (optical/coaxial) |
| BIOS | AMI BIOS (AMIHash ROM) |
Use the JBATI jumper labeled “清除 CMOS 跳线” to clear the CMOS.
