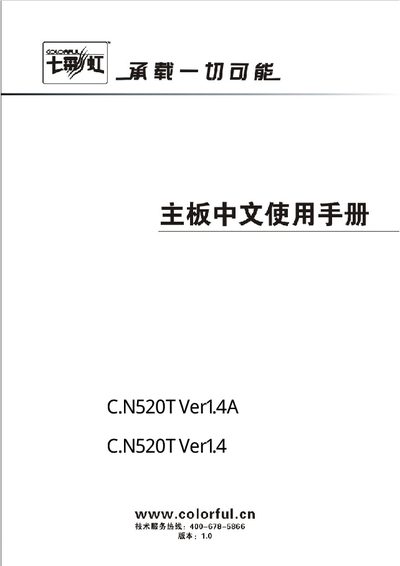

C.N520T Ver1.4A/C.N520T Ver1.4 is a product in the C.N520T series motherboard, which uses a single-chip NVIDIA MCP65S design and supports AMD Socket AM2 AMD Athlon64 FX/Athlon64 X2/Athlon64/Sempron processors and supports DDR2 533/DDR2 667/DDR2 800 standard memory.
This manual provides step‑by‑step instructions for installing the Colorful C.N520T motherboard, including hardware setup, driver installation, and BIOS configuration. It also lists the standard accessories included with the product and safety precautions for handling the board.
The document details the technical specifications of the board, such as supported CPUs, memory types, expansion slots, storage interfaces, USB ports, audio and network features, and includes a parts list and connector diagram for reference. This manual is written in Chinese.
| CPU Socket | AMD Socket AM2 |
|---|---|
| Supported Processors | AMD Athlon64, Athlon64 X2, Sempron |
| Chipset | NVIDIA MCP65S |
| Memory Slots | 4 DDR2 240‑pin slots, dual‑channel DDR2 533/667/800 |
| PCI Express Slots | 1 x16, 1 x1 |
| PCI Slots | 3 PCI slots |
| SATA Interfaces | 2 SATA2 ports, 1 eSATA port |
| USB Ports | 8 USB 2.0 ports (4 require cables) |
It uses an AMD Socket AM2 compatible with AMD Athlon64, Athlon64 X2 and Sempron processors.
The board provides eight USB 2.0 ports, four of which require cables to be connected.
It supports up to four DDR2 modules (533 MHz, 667 MHz, or 800 MHz) in dual‑channel mode.
The board includes one PCI Express x16 slot, one PCI Express x1 slot, three PCI slots, and an eSATA connector.
