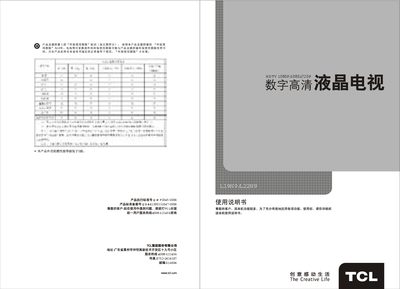

L19N9/L22N9 is a LCD TV produced by TCL. It has 1080P/1080i/720P resolution and supports HDMI, AV, S-VIDEO, VGA, USB, etc. It also supports cartoon mode, dynamic blur processing, and clarity enhancement.
This manual covers safety warnings and precautions, including proper ventilation, handling of the screen, and power‑line safety. It also lists the accessories supplied with the TV and explains the main functions such as menu navigation, colour temperature selection, and the various video/audio inputs.
Detailed sections describe the front‑panel layout, remote‑control keys, connection methods for antenna, HDMI, AV, component and VGA inputs, as well as the full technical specifications. Quick‑operation shortcuts and a fault‑analysis guide help users resolve common issues like no picture, no sound, or interference. This manual is written in Chinese.
| 伴音输出功率 | 2.5W+2.5W (左+右音箱) |
|---|---|
| 工作电压 | 100‑240V~ 50/60Hz |
| 额定消耗功率 | 50W (L19N9) / 65W (L22N9) |
| 可视图像对角线尺寸 | 48 cm (L19N9) / 55 cm (L22N9) |
| 主机尺寸 (宽×高×深) | 464×360×80 mm (L19N9) / 536×383×81 mm (L22N9) |
| 主机带底座尺寸 | 464×390×140 mm (L19N9) / 536×434×151 mm (L22N9) |
| 主机重量 | 约4.7 kg (L19N9) / 约5.3 kg (L22N9) |
