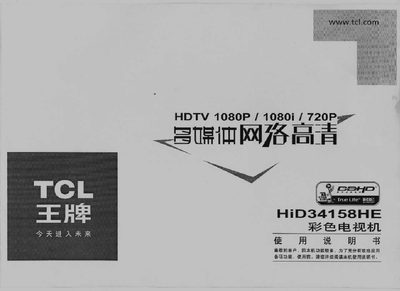

This manual explains the safety precautions and proper handling of the TCL HID34158HE color television, including warnings about high voltage inside the unit and recommended cleaning methods. It also describes the main panel layout, remote control functions, and how to power the TV on and off.
Detailed sections cover connection diagrams for HDMI, VGA, component and audio inputs, network configuration for wired and DSL connections, and troubleshooting tips for common issues such as no picture or sound. Technical specifications such as power consumption, dimensions, weight, and supported video formats are listed at the end of the document. This manual is written in Chinese.
| Working Voltage | 165W‑245W 50Hz |
|---|---|
| Power Consumption | 150W |
| Dimensions (W×H×D) | 974 mm × 566 mm × 696 mm |
| Weight | 73 kg |
Check the external connection diagram to ensure the correct video source is selected and all cables are securely connected.
