ViewSonic VG730m is a liquid crystal display with good visual ergonomics and image quality, which can improve the working environment of users and reduce vision and strain problems. The product meets the requirements of TCO'03 Displays label, including ergonomics, energy, emission and ecology.

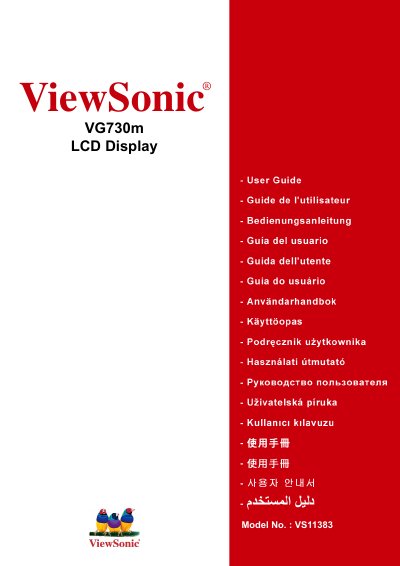

This manual covers everything you need to set up and use the ViewSonic VG730m 17‑inch LCD display, including safety warnings, quick installation, optional wall‑mounting, timing‑mode configuration, menu and power‑button lock settings, and screen‑adjustment procedures. It also contains technical specifications, troubleshooting tips, cleaning instructions, and warranty details.
The guide is organized with a table of contents, step‑by‑step instructions, diagrams, and contact information for customer support, making it easy for both end users and technicians to get the most out of the monitor. This manual is written in Chinese.
| Screen size | 17 inches |
|---|---|
| Maximum resolution | 1280 x 1024 |
| Input signal type | RGB analog (0.7/1.0 Vp‑p, 75 Ω) |
| Power supply voltage | 100‑240 VAC, 50‑60 Hz |
| Weight | 10.8 lb (4.9 kg) |
| Physical dimensions (W×D×H) | 386.8 mm × 474.2 mm × 230 mm |
Connect the power cord and the video cable as shown in the quick‑installation steps, then turn on the monitor and the computer.
Press and hold the [1] button together with the up‑arrow for about 10 seconds to lock the menu; repeat the same combination to unlock it.
Set the timing mode to VESA 1280 × 1024 at 60 Hz (or 70/72 Hz) for optimal display performance.
Turn off the monitor, then wipe the screen with a clean, soft, lint‑free cloth; for tougher grime, lightly dampen the cloth with a non‑ammonia, non‑alcohol glass cleaner.
