DG401/DG403/DG405 is a high-performance switch with low on-resistance and low leakage current, suitable for sample-and-hold circuits, test equipment, guidance and control systems, heads-up displays, communication systems, PBX, PABX, battery-operated systems, audio signal routing, military radios, etc. applications.
The Maxim DG401/DG403/DG405 family are dual, high‑speed analog switches with low on‑resistance and low charge injection. The DG401 is a single‑pole/single‑throw device, the DG403 is dual‑pole/double‑throw, and the DG405 is dual‑pole/single‑throw. They operate from a single +10 V to +30 V supply or bipolar ±4.5 V to ±20 V supplies.

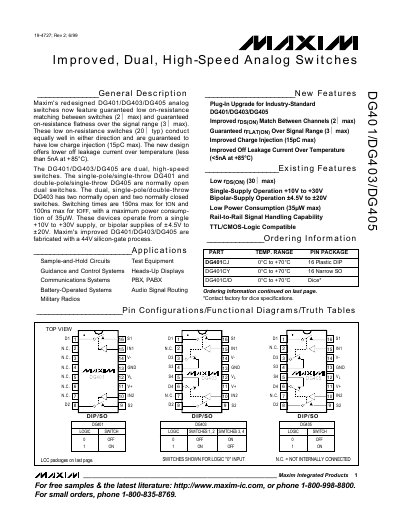

The datasheet provides absolute maximum ratings, electrical characteristics, pin configurations, timing diagrams, and ordering information. It also lists typical applications such as sample‑and‑hold circuits, test equipment, and communication systems.
| Typical On‑Resistance (rDS(ON)) | 20 Ω |
|---|---|
| On‑Resistance Match Between Channels | 2 Ω max |
| On‑Resistance Flatness | 3 Ω max |
| Charge Injection | 15 pC max |
| Off‑Leakage Current | <5 nA at +85 °C |
| Switching Time tON | 150 ns max |
| Switching Time tOFF | 100 ns max |
| Maximum Power Consumption | 35 µW |
| Supply Voltage Range | +10 V to +30 V (single) or ±4.5 V to ±20 V (bipolar) |
The typical on‑resistance is 20 Ω.
They can operate from a single +10 V to +30 V supply or from bipolar supplies of ±4.5 V to ±20 V.
The maximum turn‑on time is 150 ns and the maximum turn‑off time is 100 ns.
Maximum power consumption is 35 µW.
