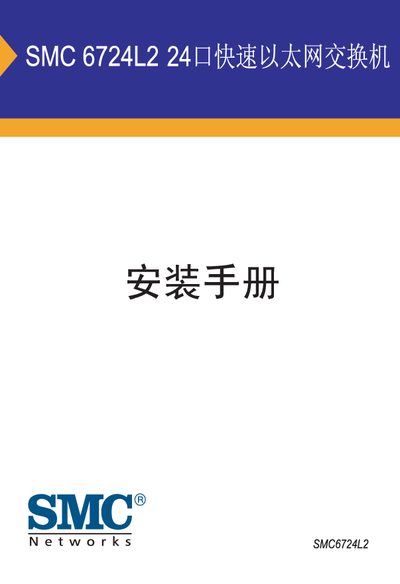

This document describes the features and advantages of the SMC6724L2.1 switch, including connectivity, scalability, and performance. It also covers network planning, installation of access devices, network connections, and cable specifications.
The SMC 6724L2 is a 24‑port 10BASE‑T/100BASE‑TX fast Ethernet switch that also supports optional 1000BASE‑T, 1000BASE‑SX and 1000BASE‑LX optical modules. It offers full‑duplex operation, VLAN, QoS, and flow‑control to ensure reliable data transmission.
The guide covers hardware description, port and module specifications, LED indicators, management options (console, SNMP, web), and physical installation steps for rack‑mount or desktop deployment. It also lists dimensions, weight, and compliance with IEEE 802.3 standards. This manual is written in Chinese.
| Number of Ethernet ports | 24 10BASE‑T/100BASE‑TX ports |
|---|---|
| Supported port speeds | 10 Mbps and 100 Mbps per port |
| Full‑duplex support | Supported on all ports |
| 1000BASE‑T module speed | 1 Gbps full‑duplex |
| 1000BASE‑SX module speed | 1 Gbps full‑duplex |
| 1000BASE‑LX module speed | 1 Gbps full‑duplex |
| Weight | 50 g (1.8 oz) |
| Dimensions | 6.0 × 9.1 cm (2.37 × 2.56 in.) |
It has 24 10BASE‑T/100BASE‑TX ports.
Yes, full‑duplex mode is supported on all ports.
