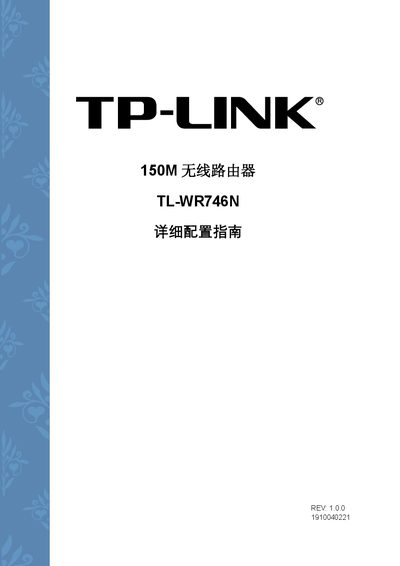

This is a 150M wireless router product manual. This document aims to help you use the router's functions correctly, including the router's performance characteristics and detailed descriptions of all functions.
This manual is a detailed configuration guide for the TP-Link TL‑WR746N 150 Mbps wireless router. It covers product overview, hardware description, quick installation steps, and full configuration options such as WAN/LAN settings, DHCP, firewall, QoS, and advanced security features.
The document also includes system tools for firmware upgrades, backup/restore, FAQ, and a complete specifications table. Hardware sections describe front and rear panel LEDs, ports, and antenna details, while the appendix provides guidance on browser settings and MAC address lookup. This manual is written in Chinese.
| Frequency range | 2.4–2.4835 GHz |
|---|---|
| LAN ports | 4 × 10/100 Mbps auto‑MDIX RJ45 |
| WAN port | 1 × 10/100 Mbps auto‑MDIX RJ45 |
| Maximum 802.11n data rate | 150 Mbps |
| Supported standards and protocols | IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u, 802.3x, IEEE 802.1X, CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE |
| Antenna count | 1 |
| Antenna type | Internal |
| Transmit power | 20 dBm (max) |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -40 °C to 70 °C |
The manual includes a section titled “IE 浏览器设置” that explains how to configure Internet Explorer for proper router access.
The manual lists a “恢复出厂设置” option under system tools for resetting the router to its original configuration.
