This document describes the packaging specifications and device orientation of SSOT-25 and SSOT-24 products.

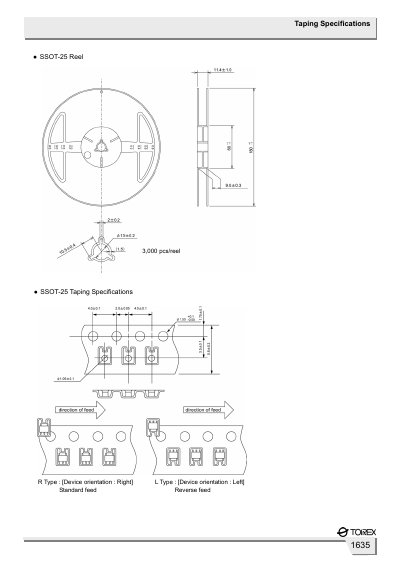

The document provides the taping specifications for the SSOT-25 and SSOT-24 chip packages. Each reel holds 3,000 pieces and supports two feed orientations.
Two orientation types are defined: R Type (standard feed) with the device oriented to the right, and L Type (reverse feed) with the device oriented to the left. These specifications apply to both SSOT-25 and SSOT-24 models. This manual is written in Chinese.
| Pieces per reel | 3,000 pcs |
|---|---|
| R Type orientation | Device orientation: Right (standard feed) |
| L Type orientation | Device orientation: Left (reverse feed) |
Each reel contains 3,000 pieces.
The R Type feed uses a standard orientation with the device facing right.
The L Type feed uses a reverse orientation with the device facing left.
