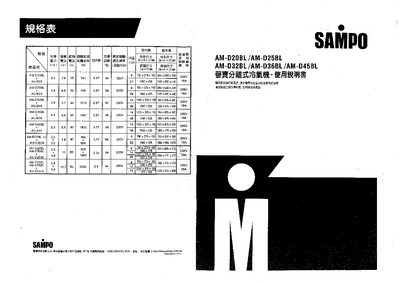

This manual covers safety regulations, wiring, grounding, and proper installation of the Sampo AM‑D20BL (and related models). It details the functions of each component, how to operate the remote control, and how to set timers and fan speeds.
Additional sections describe routine maintenance, cleaning procedures, and troubleshooting tips to ensure reliable performance of the indoor and outdoor units. This manual is written in Japanese.
| Operating Voltage | 220 V / 250 V |
|---|---|
| Unit Dimensions (W×H×D) | 790 mm × 270 mm × 180 mm |
Use a 2.5 mm² wire for the live conductor and a 6.0 mm² wire for the neutral conductor.
Select the timer function (E‑1) on the control panel and set the desired start time.
Do not exceed 7 m for the piping length to avoid loss of cooling capacity.
