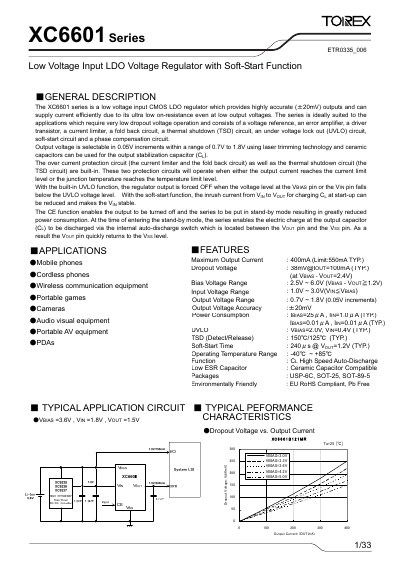

The XC6601 series low voltage input CMOS LDO regulator provides highly accurate (±20mV) outputs and can supply current efficiently due to its ultra low on-resistance even at low output voltages. The series is ideally suited to the applications which require very low dropout voltage operation and consists of a voltage reference, an error amplifier, linear regulator and output buffer.
The XC6601 series provides a low‑voltage input LDO solution for mobile phones, wireless equipment, portable games, cameras, AV gear and PDAs. It features selectable output voltage in 0.05 V steps, built‑in UVLO, soft‑start, auto‑discharge and over‑current protection.
Key specifications include a 400 mA typical output current (550 mA limit), 38 mV dropout at 100 mA, 0.7‑1.8 V output range, 1.0‑3.0 V input range, and operation from –40 °C to +85 °C. The device is supplied in USP‑6C, SOT‑25 and SOT‑89‑5 packages and complies with RoHS.
| Maximum Output Current | 400 mA (typ.) / 550 mA (limit) |
|---|---|
| Output Voltage Range | 0.7 V – 1.8 V (0.05 V increments) |
| Input Voltage Range | 1.0 V – 3.0 V |
| Dropout Voltage (100 mA) | 38 mV |
| Soft‑Start Time | 240 µs @ VOUT=1.2 V |
| Compatible Packages | USP‑6C, SOT‑25, SOT‑89‑5 |
The typical maximum output current is 400 mA, with an absolute limit of 550 mA.
The dropout voltage is 38 mV when the output current is 100 mA.
The soft‑start time is 240 µs at a 1.2 V output.
