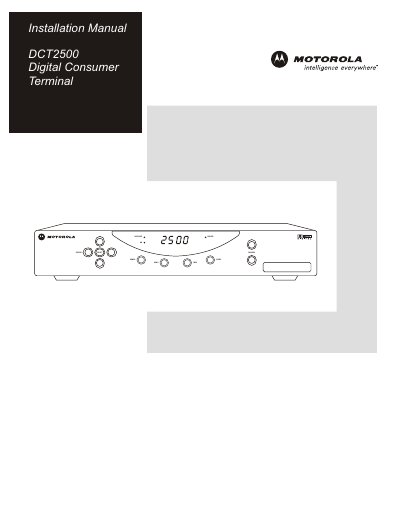

This manual describes how to use the DCT2500 Digital Consumer Terminal
The Motorola DCT2500 Installation Manual guides installers through setting up the analog/digital set‑top terminal. It describes the unit’s features such as a 54‑860 MHz integrated tuner, RF return, serial data port, and optional IR Blaster, and explains how to connect audio/video, RF, and network interfaces.
The manual also includes safety cautions, FCC and Canadian compliance information, grounding recommendations, and repair procedures. It is organized into sections covering introduction, overview, installation steps, optional IR Blaster installation, troubleshooting, specifications, and diagnostics.
| Integrated tuner frequency range | 54 to 860 MHz |
|---|---|
| Ringer Equivalence Number (REN) | 0.4 |
| Integrated RF return | Built‑in STARVUE IT module |
| Serial data interface | RS‑282 high‑speed serial port |
| Digital audio output | Coaxial |
Do not expose the appliance to rain or moisture, do not use the plug with an extension cord, and ensure proper grounding of power and telephone lines.
Call the Motorola Repair Facility at 1‑800‑227‑0450 to obtain a Return for Service Authorization (RSA) number before shipping the unit.
The DCT2500 has a REN of 0.4.
The integrated tuner supports frequencies from 54 MHz to 860 MHz.
