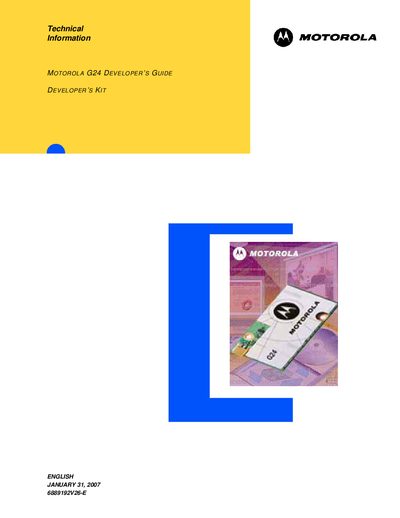

This is a developer's guide for MOTOROLA G24, which mainly introduces the features and characteristics of MOTOROLA G24.
This guide describes the Motorola G24 developer kit, its safety considerations, warranty information, and the intended audience of developers. It includes sections on general safety, environmental care, and liability limitations.
The document details the hardware features such as power supply options, serial and audio interfaces, SIM card and antenna connections, as well as optional switches and ADC modules. It also provides a parts list, schematics, and troubleshooting procedures for service personnel.
| Analog to Digital Converter (ADC) model | S161 |
|---|---|
| General Purpose I/O (GPIO) model | S120 |
| UID module model | S170 |
See the "How to Get Warranty Service?" section of the guide for the required steps.
The kit includes RS232‑1, RS232‑2, USB, Data Logger, and audio connectors.
