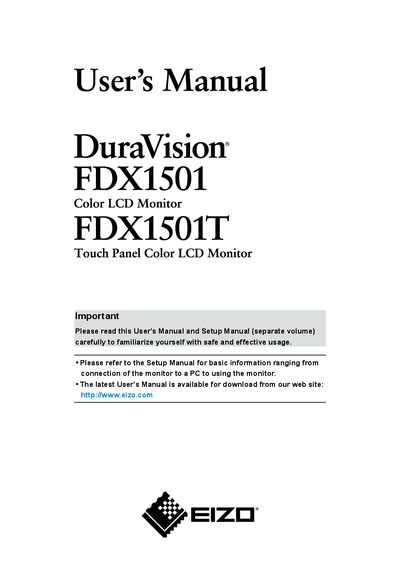

EIZO FDX1501/FDX1501T Color LCD Monitor User's Manual

User's Manual, introduces safe and effective use of the product

Brand: EIZO
Category: Monitor
Document type: User Manual
Language: English
Pages: 47
File format: PDF
File size: 1.8 MB
Published: 16 March, 2012
Updated: 30 September, 2023
Models: FDX1501, FDX1501T
MD5 checksum: D93516942A9E5D230DB2D6D57F9D95F2
PDF: EIZO FDX1501/FDX1501T Color LCD Monitor User's Manual PDF

About this manual

This EIZO user’s manual covers the DuraVision FDX1501 color LCD monitor and FDX1501T touch panel color LCD monitor. It explains screen and color adjustment, monitor settings, power saving, troubleshooting, optional arm attachment, multiple-PC connections and specifications.

The FDX1501T includes a resistive touch panel and uses a supplied touch panel driver. For basic monitor-to-PC connection and initial monitor use, the document directs users to a separate Setup Manual.

What's inside

Introduction
Basic Operations and Functions
Adjusting Screens
Setting Monitor
Power Saving Functions
Troubleshooting
Reference
Cleaning
EIZO LCD Utility Disk

Specifications

Display resolution	1024 x 768
Panel and backlight	LED backlight LCD panel
Operating temperature	0°C to 50°C (32°F to 122°F)
Operating humidity	20% to 90% R.H.
Effective dot percentage	99.9994% or higher
Touch panel technology	Resistive technology (FDX1501T only)
Touch panel operating system compatibility	Microsoft Windows 7 / Vista / XP

Frequently asked questions

What touch panel technology does the FDX1501T use?

The FDX1501T uses a resistive technology touch panel.

How can an afterimage be avoided?

Use the screen saver or power save function when the same image will remain displayed for an extended period.

How should the monitor panel be cleaned?

Clean it with a soft cloth, such as cotton cloth or lens cleaning paper.

Where are basic connection and setup instructions located?

The document directs users to the separate Setup Manual for basic monitor-to-PC connection and monitor use.
