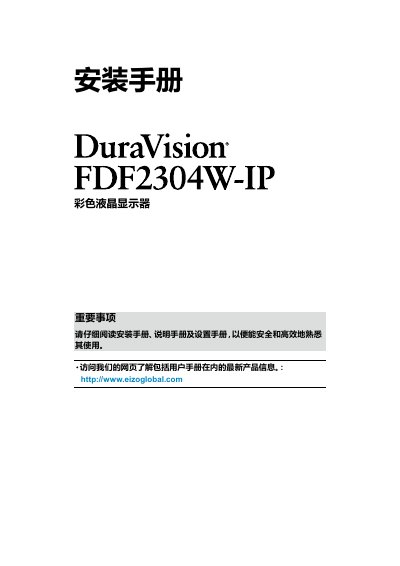

This guide provides installation, configuration, and usage instructions for the EIZO FDF2304W-IP color LCD monitor used with network cameras.
The EIZO FDF2304W-IP is a 23‑inch widescreen LCD monitor designed for displaying video from network cameras. It supports up to 16 cameras, offers split‑screen modes, and includes Smart Resolution, Smart Insight, and Noise Reduction features.
The manual covers product overview, system configuration, camera registration, on‑screen and web‑based settings, troubleshooting, reference pages, and a glossary. It also details safety precautions, network security recommendations, and warranty information. This manual is written in Chinese.
| Screen size | 23.0 inches |
|---|---|
| Resolution | 1920×1080 |
| Viewing angle | 178° |
| Backlight type | LED |
| Maximum network cameras | 16 |
| Split‑screen modes | 1, 3, 4, 8, 9, 16 |
| Smart Resolution | Enabled |
| Smart Insight | Enabled |
| Noise Reduction | Enabled |
| Effective pixel percentage | 99.9994% or higher |
| Warranty | 2 years |
The monitor can register and display up to 16 network cameras simultaneously.
Wait at least 30 minutes after power‑on before adjusting the display to allow the electronics to stabilize.
Use a screen saver or power‑saving mode, keep brightness low, change displayed images regularly, and turn off the monitor for several hours if needed.
