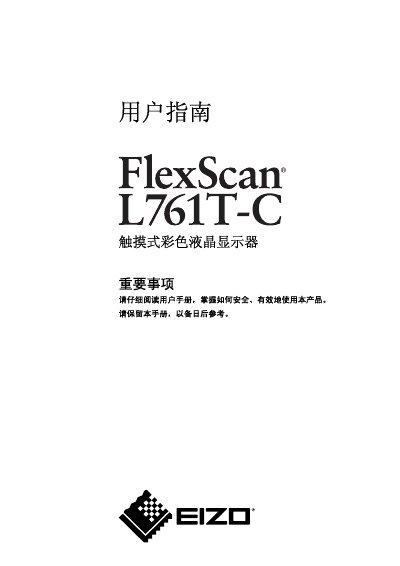

User guide for EIZO color LCD monitor covering safety, setup, operation, adjustment, troubleshooting and specifications.
This manual provides safety instructions, product overview, cable connections, screen manager usage, adjustment settings, installation of the base, troubleshooting, cleaning, and detailed specifications for the EIZO color LCD monitor.
It also includes a glossary of technical terms and an appendix with preset timing tables for analog inputs. The guide is intended for end‑users to safely and effectively operate the display. This manual is written in Chinese.
| Screen size | 48 cm (19.0 in) |
|---|---|
| Resolution | 1280 × 1024 (1 M pixel) |
| Maximum power consumption | 40 W (with speaker) |
| Power input | 100‑120 V / 200‑240 V AC, 50/60 Hz |
| Input connectors | 15‑pin mini D‑Sub, DVI‑D |
| Touch panel detection method | Analog capacitive (finger touch) |
| Operating temperature | 0 °C – 35 °C |
| Weight with base | 9.0 kg |
Use a power cord rated for 100‑120 V or 200‑240 V AC, 50/60 Hz.
The monitor can display up to 1.6 million colors.
Maximum power consumption is 40 W (including the speaker).
The native resolution is 1280 × 1024 pixels (1 M pixel).
