The document provides information about the features and characteristics of the P42A1-AK product.

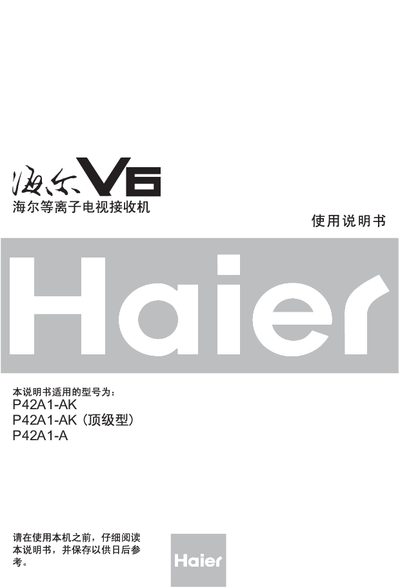

This manual covers important safety instructions and preventive measures for the Haier P42A1-AK plasma TV receiver, including required clearances around the unit and handling of power connections. It also lists the accessories supplied with the product, such as the remote control, battery, power cord, and wall‑mount brackets.
Installation and connection sections describe how to attach an external antenna, connect video and audio RCA cables, and use the PC input ports. The specifications page gives detailed electrical and dimensional data, and the final pages contain warranty and certification information. This manual is written in Chinese.
| Power supply voltage | 160 V‑250 V AC, 50/60 Hz |
|---|---|
| Power consumption | 380 W |
| Screen size (W×H) | 933 mm × 532 mm |
| Aspect ratio | 16:9 |
| Speaker output power | 7 W per channel |
| Color system | NTSC, PAL |
| Video input (RCA) | 1.0 Vp‑p, 75 Ω |
| Audio input (RCA) | 0.5 Vrms |
| PC signal inputs | VGA, SVGA, XGA, SXGA |
The receiver operates on an AC supply of 160 V to 250 V at 50 Hz or 60 Hz.
