This user guide introduces safe and effective operation methods for the ColorEdge CM2220 LCD monitor. Please read this manual carefully to understand the product's features and characteristics, and to use the product correctly.

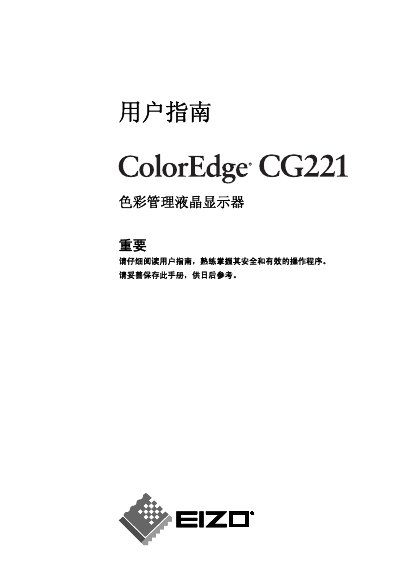

This manual guides users of the EIZO CG221 ColorEdge LCD monitor through safe operation, installation, and daily use. It includes safety symbols, warnings, and handling instructions to prevent injury and equipment damage.
Key sections cover cable connections (DVI‑I, analog, digital), screen manager functions, brightness and color adjustments, USB ports, troubleshooting steps, cleaning procedures, and a full specification table. This manual is written in Chinese.
| Screen size | 56.4 cm (22.2 inches) |
|---|---|
| Resolution | 1920 × 1200 pixels |
| Color depth | 1.6 million colors |
| Power consumption | 90 W min / 100 W max |
| Input connectors | 2 × DVI‑I (digital & analog) |
| USB ports | 1 upstream, 2 downstream (USB 2.0) |
Use the DVI‑I ports for digital or analog signals, or connect an analog D‑Sub cable; the manual provides separate sections for DVI and ADC (Apple) connections.
The monitor operates on 100‑120 V or 200‑240 V AC, 50/60 Hz, drawing 1.0 A (100‑120 V) or 0.5 A (200‑240 V).
