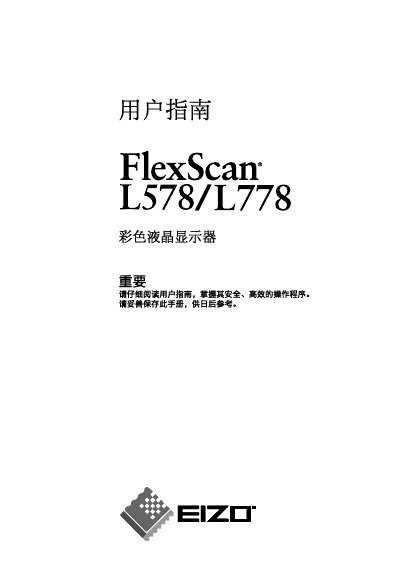

EIZO FlexScan L578/L778 Color LCD User Manual

This is a user manual for the FlexScan display from EIZO NANAO CORPORATION. The manual introduces the features and characteristics of the display.

Brand: EIZO
Category: Monitor
Document type: User Manual
Language: Chinese
Pages: 52
File format: PDF
File size: 3 MB
Published: 16 March, 2012
Updated: 30 September, 2023
MD5 checksum: 4ECD335392D4A217AFD824934369410C
PDF: EIZO FlexScan L578/L778 Color LCD User Manual PDF

About this manual

This manual covers safety symbols, warnings and cautions, and proper grounding of the power cord. It explains the power specifications (100‑120 V/200‑240 V, 50‑60 Hz) and details the connections for video, audio, and USB.

The guide also describes the on‑screen display (OSD) manager functions, installation procedures, cleaning and maintenance tips, troubleshooting steps, and the monitor’s technical specifications. This manual is written in Chinese.

What's inside

Safety Precautions
Package Contents
Controls and Connections
Power Connection
Signal Connections
Audio Input
On‑screen Display (OSD) Manager
Installation
Troubleshooting
Cleaning and Maintenance

Frequently asked questions

What safety symbols are used in the manual?

The manual lists warning and caution symbols that indicate potential hazards if not followed.

What should I do if the monitor makes abnormal noise?

Immediately disconnect the power and contact service for assistance.

Download PDF (3 MB)
