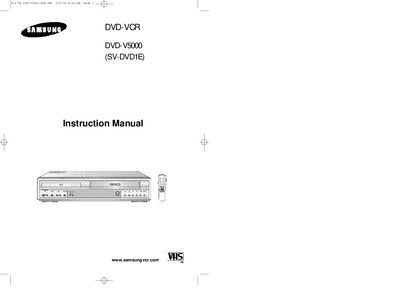

This document is the instruction manual for DVD-VCR DVD-V5000 (SV-DVD1E), and it describes the playback, searching, recording, and other functions of the product.
This guide introduces the Samsung DVD-V5000 DVD‑VCR, covering safety instructions, the remote control layout, front‑ and rear‑panel connectors, and the basic functions of the DVD and VCR decks. It also explains the display indicators and the built‑in TV tuner.
Detailed installation steps show how to connect the unit to a television using coaxial or RCA cables, how to hook up audio equipment, and how to use the Plug & Auto Set‑Up feature. The manual includes tuning instructions, deck control keys, basic TV tuner operations, recording features, DVD functions, technical specifications, and troubleshooting guides for both VCR and DVD issues.
| Rated voltage | AC100‑240V, 50/60Hz |
|---|---|
| Power consumption | 32 Watts |
| Weight | 5.6 Kg |
| General size | 430mm x 357mm x 100mm |
| Operating ambient temperature | +8°C ~ +35°C |
| Video input (Rear) | RCA jack 1.0V/p‑p (unbalanced) |
| Audio input (Rear) | -8dBm, 47 kΩ (unbalanced) |
| RF out | UHF 21‑69 (Initial CH36) |
| Audio output (DVD only) | Digital audio out (OPTICAL, COAXIAL) |
| Video output (DVD only) | S‑video out |
| Resolution | Above 240 lines (standard recording) |
| Audio frequency characteristics | 20 Hz – 20 kHz (Hi‑Fi) |
When you plug the DVD‑VCR into mains for the first time, it automatically tunes TV stations, stores them in memory, and then powers off. After the process finishes, the unit is ready for use.
