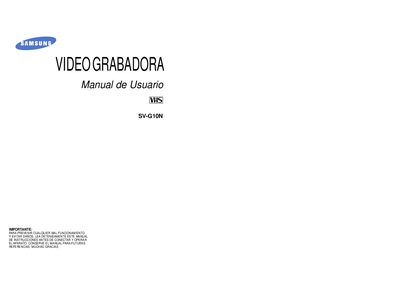

This manual is for SV-G10N VCR user manual, introduces the features and characteristics of the product, including Diamond Head®, Binorma, digital automatic tracking, HQ(high quality) video, and provides detailed operation instructions
This manual explains how to install, operate and maintain the Samsung SV‑G10N video playback machine (VCR). It covers the front‑panel controls, rear‑panel connections, cassette handling, tracking adjustment, and remote‑control functions.
The guide also includes a section on copying or dubbing video between two VCRs, safety warnings, cleaning procedures for the video heads, and a detailed troubleshooting table with common problems and their solutions. This manual is written in Spanish.
| Antenna connector type | 75 Ω (UHF/VHF) |
|---|---|
| Supported video format | VHS (SP, LP, SLP) |
| Playback format | VHS (SP, LP, SLP) |
| Power supply | 110/120/220/240 V CA, 50/60 Hz |
| Power consumption (on) | ≈13 W |
| Power consumption (standby) | ≈3.8 W |
| Dimensions (W × H × D) | 360 mm × 94 mm × 238 mm (44.2" × 3.7" × 9.4") |
| Weight | 2.8 kg (6.2 lb) |
Make sure the TV is set to channel 3 or 4, press TV/VCR on the remote, and verify all video connections.
