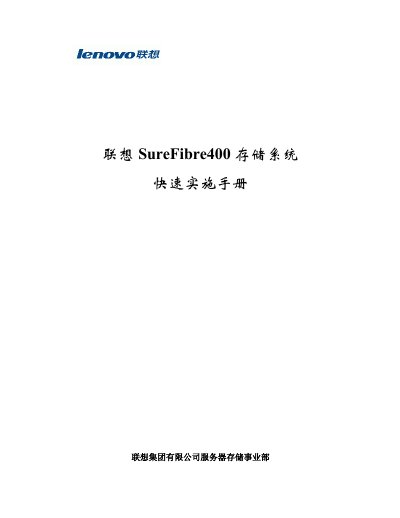

SureFibre400 storage product implementation guide mainly introduces the system implementation operation process of SureFibre400 disk array, including equipment inspection, hardware equipment installation, storage subsystem cascading, server configuration and system startup.
This guide explains the purpose and scope of implementing the Lenovo SureFibre400 storage system, defining the procedures required for a successful deployment. It is intended for storage engineers, system integrators, and partners who need a concise, step‑by‑step reference.
The document walks through hardware checks, rack installation, ID configuration, HBA setup, switch licensing, software installation (EAD, PathPilot, SAM), RAID/LUN creation, and final system validation. It also provides compatibility tables for hard drives and supported HBA adapters. This manual is written in Chinese.
| Compatible hard drive model | ST336605FC (FW0005) |
|---|---|
| Compatible hard drive model | ST373405FC (FW0005) |
| Controller firmware versions | 8.40 / 8.50 / 9.20 |
| ID setting range | 0‑7 |
| Supported QLogic HBA cards | Qla2310F, Qla2340L, Qla2342L |
| Supported Emulex HBA cards | LP9002L, 9802L, 982L |
| Required HBA speed setting | 1G/2G auto‑adaptive |
The array supports Qlogic Qla2310F, Qla2340L, Qla2342L, Emulex LP9002L/9802L/982L, and LSIlogic FC40909G/FC40919O adapters.
Each array must have a unique ID between 0 and 7, and both controller cards in the same array must share the same ID.
Compatible drives include ST336605FC, ST373405FC, ST336607FC, ST373307FC, and ST3146807FC with the listed firmware versions.
The HBA speed should be changed to 1G/2G auto‑adaptive mode.
