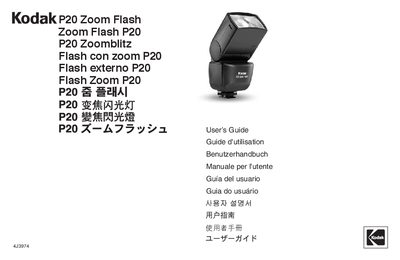

This document describes the features, functions, and usage of the P20 Zoom Flash, including installing batteries, mounting the flash to the camera, flash charging status, power save and automatic shutdown, LCD back light, mode button, zoom button, test button, flash range scale, adjustable bounce flash head, and power zoom head.
This manual covers safety precautions, battery installation, and mounting the P20 flash onto a camera. It explains the LCD panel, power‑save mode, and how to use the mode, zoom, and test buttons.
The guide also details the adjustable bounce head, power‑zoom head, technical specifications, and troubleshooting tips such as flash not firing or long recharge times. FCC, Canadian, and Australian compliance information is included at the end.
| Color Temperature | 5600 K +400 K at full power output |
|---|---|
| Flash Duration | 1/800 sec at 1/2 power output |
| Operating Temperature | 0‑40 °C (32‑104 °F) |
| Dimensions | 83.8 × 62.4 × 93 mm (3.3 × 2.5 × 3.7 in) |
| Battery Type | Two 1.5 V AA batteries (alkaline, Ni‑MH, oxy‑alkaline, rechargeable) |
The P20 uses two 1.5 V AA batteries and works with alkaline, Ni‑MH, oxy‑alkaline, and most AA rechargeable batteries.
With AA alkaline batteries the flash can fire about 100 times, and the recycling time is approximately 10 seconds.
The flash can operate between 0 °C and 40 °C (32 °F‑104 °F).
