This document describes the features and characteristics of the KODAK CAMEO Camera, including its compact design, auto-focus, 35 mm film, motorized film advance, and auto-film rewind.

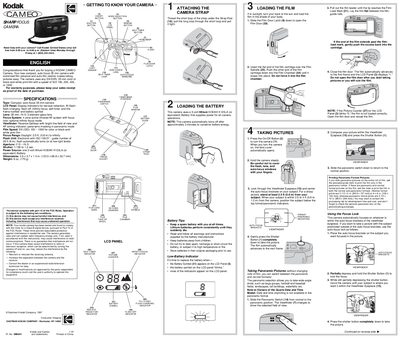

This manual introduces the Kodak CAMEO compact 35 mm auto‑focus camera, covering its features, battery and film loading, shooting modes, and troubleshooting. It also includes warranty and service information for owners in the United States.
The guide walks users through basic operations such as attaching the strap, using the self‑timer, flash, red‑eye reduction, and setting date and time, as well as caring for the camera and handling film rewinding.
| Type | Compact, auto‑focus 35 mm camera |
|---|---|
| LCD Panel | Displays indicators for red‑eye reduction |
| Lens | 28 mm, f/4.5; 3‑element glass lens |
| Focus System | 4‑zone active infrared AF with focus lock |
| Viewfinder | Reverse‑Galilean with bright line field |
| Film Speed | DX (ISO) 100 – 1000 |
| Focus Range | 2.5 ft (0.8 m) to infinity (daylight) |
| Flash Unit | Electronic, guide number 26 ft (8 m) at ISO 100 |
| Aperture | f/13 – f/4.5 |
| Shutter | 1/150 to 1.2 sec |
| Power Source | One 3‑volt lithium KODAK K123LA (or equivalent) battery |
| Dimensions | 4.9 × 2.7 × 1.3 in (123.5 × 68.8 × 32.7 mm) |
| Weight | 6 oz (170 g) |
The camera uses a 3‑volt lithium KODAK K123LA (or equivalent) battery that supplies power for all camera operations.
After the last picture the film automatically rewinds; the picture counter blinks “0” when rewinding is complete.
Press the Self‑Timer button (6); the Self‑Timer indicator appears on the LCD panel and the lamp glows red.
