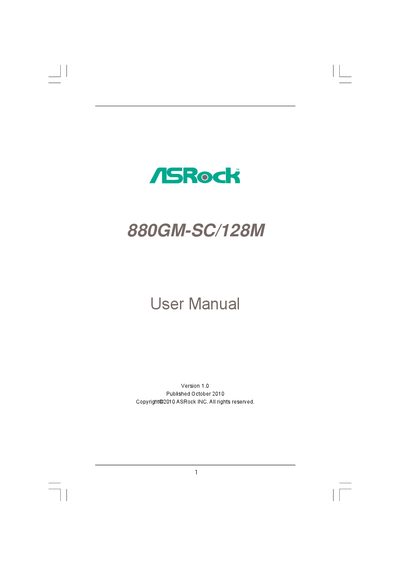

This manual provides detailed introduction of the features and usage of 880GM-SC/128M motherboard
This manual introduces the ASRock 880GM-SC/128M Micro ATX motherboard, its package contents, specifications, and hardware layout. It covers CPU, memory, expansion slots, graphics, audio, LAN, and rear panel I/O details, as well as unique features such as OC Tuner and Instant Flash.
The guide also explains BIOS setup utility options, software support, driver installation, and troubleshooting. It includes safety cautions, FCC compliance notes, and contact information for further assistance.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Socket | Socket AM3 |
| Northbridge Chipset | AMD 880G |
| Southbridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM |
| Maximum Memory Capacity | 8 GB |
| Integrated Graphics | AMD Radeon HD 4250 |
| Audio Codec | ALC662 (5.1 CH HD Audio) |
| LAN Controller | Realtek RTL8111DL Gigabit Ethernet |
| SATA Connectors | 6 x Serial ATAII 3.0 Gb/s |
| Rear USB Ports | 6 x USB 2.0 |
| BIOS Type | 8 Mb AMI BIOS |
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, Windows XP Media Center, and Windows XP 64‑bit.
The rear panel provides six USB 2.0 ports.
The integrated graphics can use up to 512 MB of shared system memory.
The board uses an 8 Mb AMI BIOS.
