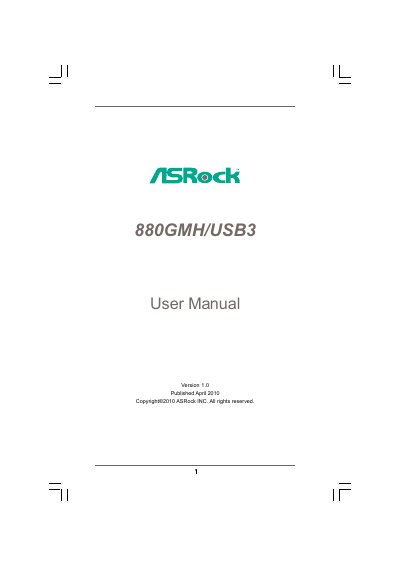

ASRock 880GMH/USB3 User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 61
File format: PDF
File size: 536 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: 880GMH, USB3
MD5 checksum: BA0347A8732C305DF741DBBEC97E444F
PDF: ASRock 880GMH/USB3 User Manual PDF

About this manual

This manual guides users through the hardware installation of the ASRock 880GMH/USB3 motherboard, covering CPU, memory, expansion cards, and peripheral connections. It also explains BIOS configuration, overclocking features, and software support provided on the included support CD.

Safety cautions, FCC compliance notes, and detailed specifications are included to help users set up and maintain the system safely and efficiently. This manual is written in Chinese.

What's inside

Introduction
Specifications
Motherboard Layout
I/O Panel
CPU Installation
Memory Installation
Expansion Slots
BIOS Setup Utility
Software Support
Safety Precautions

Specifications

Form Factor	Micro ATX (9.6" x 9.0")
CPU Socket	Socket AM3
Chipset	AMD 880G northbridge / AMD SB710 southbridge
Memory Slots	4 x DDR3 DIMM
Maximum Memory	16 GB
Integrated Graphics	AMD Radeon HD 4250
Audio Codec	Realtek ALC892

Frequently asked questions

What CPU socket does the 880GMH/USB3 motherboard support?

It supports Socket AM3 processors.

How many USB 3.0 ports are provided on the motherboard?

The board includes one USB 3.0 port.

What is the maximum amount of system memory supported?

The motherboard can handle up to 16 GB of DDR3 memory.

Which integrated graphics chip is built into the board?

It features an AMD Radeon HD 4250 graphics processor.
