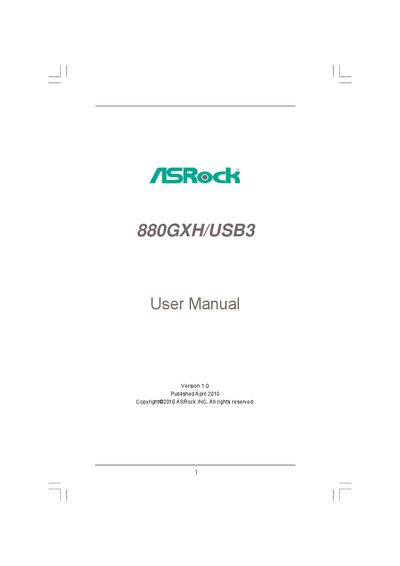

This manual introduces the features and usage of the ASRock 880GXH/USB3 motherboard
This manual introduces the ASRock 880GXH/USB3 ATX motherboard, lists the package contents, and details the hardware specifications, including CPU, memory, graphics, and I/O features. It guides users through component installation such as CPU, memory modules, expansion cards, and connectors.
Later sections cover BIOS configuration, driver installation, and operating‑system setup, along with instructions for using the Support CD, utilities, and troubleshooting. The document also includes safety warnings and regulatory notices.
| Form factor | ATX (12.0" x 8.8") |
|---|---|
| CPU socket | Socket AM3 |
| Supported CPUs | AMD Phenom II X4/X3/X2, Athlon II X4/X3/X2, Sempron |
| Chipset | Northbridge AMD 880G, Southbridge AMD SB710 |
| Memory slots | 4 x DDR3 DIMM |
| Maximum memory | 16 GB |
| Integrated graphics | AMD Radeon HD 4250 |
| Audio | 7.1‑channel HD Audio (Realtek ALC892) |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| SATA ports | 5 x SATA II 3.0 Gb/s connectors (RAID supported) |
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, Windows XP, XP Media Center and XP 64‑bit.
The board includes one USB 3.0 port.
The motherboard can handle up to 16 GB of DDR3 memory.
It uses an AMD 880G northbridge and an AMD SB710 southbridge.
