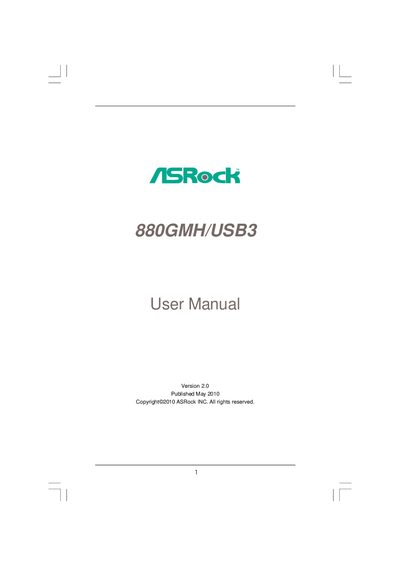

This is the user manual of ASRock 880GMH/USB3. It includes the basic information of the product and its features.
This manual guides users through hardware installation, including CPU, memory, and expansion slots, as well as detailed BIOS configuration and driver setup. It also covers supported operating systems, RAID options, and overclocking features.
Additional sections describe the rear I/O panel, USB 3.0 implementation, audio and LAN specifications, and the contents of the support CD, offering a complete reference for building and maintaining a system with the 880GMH/USB3 board.
| Form Factor | Micro ATX (9.6" x 9.0") |
|---|---|
| CPU Socket | Socket AM3 |
| Northbridge Chipset | AMD 880G |
| Southbridge Chipset | AMD SB710 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Integrated Graphics | AMD Radeon HD 4250 |
| Audio Codec | Realtek ALC892 |
| LAN | Realtek RTL8111 DL Gigabit Ethernet |
| SATA Ports | 5 × Serial ATAII 3.0 Gb/s (RAID 0/1/10/JBOD) |
The motherboard supports Microsoft Windows 7, Windows 7 64‑bit, Windows Vista, Vista 64‑bit, Windows XP, XP Media Center and XP 64‑bit.
Yes, the five Serial ATAII connectors support RAID 0, RAID 1, RAID 10 and JBOD.
The board can accommodate up to 16 GB of DDR3 memory across its four DIMM slots.
