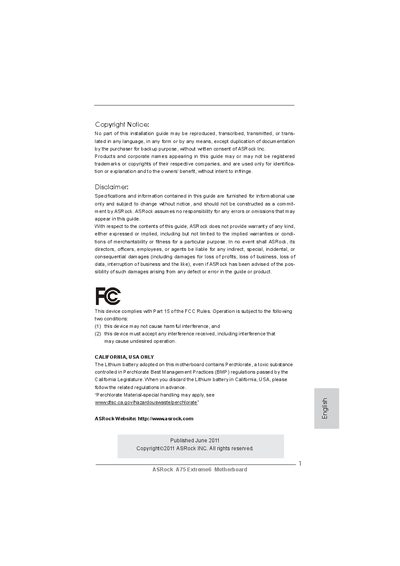

ASRock A75 Extreme6 Motherboard Installation Guide
The ASRock A75 Extreme6 Motherboard Installation Guide walks users through unpacking, connecting cables, and configuring BIOS settings for a smooth build. It includes a brief introduction, package contents, and a detailed layout of the motherboard components.
Key sections cover the motherboard specifications, I/O panel functions, multi‑streaming audio setup, SATA and RAID configuration, and cautions about over‑clocking. The guide also points to the full user manual on the support CD for advanced features.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket FM1 (100W processors) |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory | 32 GB |
| PCI Express Slots | 3 × PCIe 2.0 x16, 1 × PCIe 2.0 x1, 3 × PCI |
| SATA3 Connectors (AMD) | 6 × 6.0 Gb/s |
| SATA3 Connectors (ASMedia) | 2 × 6.0 Gb/s |
| Audio Channels | 7.1 CH HD Audio (Realtek ALC892) |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
| Graphics Support | AMD Radeon HD 65XX/64XX, DirectX 11 |
The motherboard provides eight SATA3 6.0 Gb/s connectors – six from the AMD A75 FCH and two from the ASMedia ASM1061 controller.
It supports 7.1‑channel HD audio using the Realtek ALC892 codec.
Connect a front‑panel audio cable to the front‑panel audio header, then use the Mixer ToolBox to enable playback multi‑streaming and select the desired channel mode.
