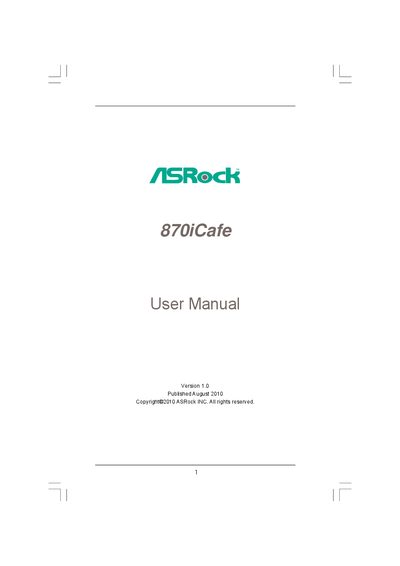

870iCafe User Manual, introduces the features and characteristics of 870iCafe, specifications, usage methods, etc.
This manual guides users through the hardware installation of the ASRock 870iCafe motherboard, including package contents, CPU and memory installation, and connector layout. It also covers BIOS setup, over‑clocking features, and software support via the included Support CD.
Additional sections describe the motherboard’s specifications, such as supported processors, memory capacity, SATA3 ports, and BIOS features, as well as warranty, disclaimer, and regulatory information.
| Form Factor | ATX, 12.0" x 8.2" |
|---|---|
| CPU Socket | Socket AM3 |
| Northbridge Chipset | AMD 870 |
| Southbridge Chipset | AMD SB850 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| SATA3 Connectors | 6 SATA3 6.0 Gb/s connectors |
| BIOS Type | 8 Mb AMI BIOS |
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
The board provides six SATA3 6.0 Gb/s connectors.
The motherboard can handle up to 16 GB of DDR3 memory.
It uses an 8 Mb AMI BIOS.
