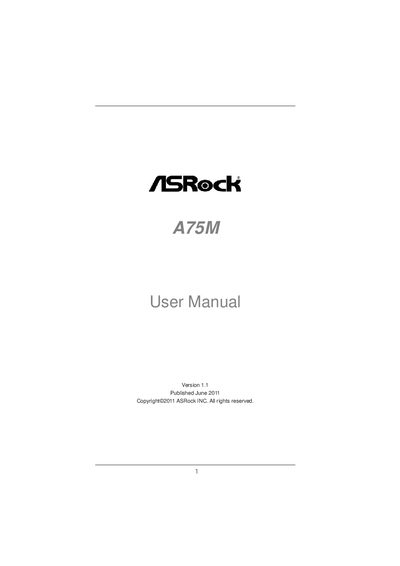

A75M User Manual, introduces the features and usage methods of the product
This manual introduces the ASRock A75M Micro ATX motherboard, covering its features, package contents, and hardware specifications. It guides users through CPU, memory, and storage installation, as well as dual‑graphics and dual‑monitor setup.
The document also details the UEFI BIOS utility, supported operating systems, support CD utilities, and special procedures such as installing Windows on HDDs larger than 2 TB. Safety notices, FCC/CE compliance, and warranty information are included.
| Form Factor | Micro ATX (9.6" x 8.5") |
|---|---|
| CPU Socket | FM1 (100W processors) |
| Chipset | AMD A75 FCH (Hudson‑D3) |
| Memory Slots | 2 DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Supported Memory Speeds | DDR3 2400+(OC)/1866/1600/1333/1066/800 |
| Expansion Slots | 1 × PCIe 2.0 x16, 1 × PCIe 2.0 x1, 2 × PCI |
| Graphics | AMD Radeon HD 65XX/64XX |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC892 (7.1 CH HD Audio) |
| USB 3.0 Ports | 4 |
Use the UEFI BIOS, set SATA mode to AHCI, select the UEFI boot option for the installation media, and then run the Windows installation.
It supports AMD Socket FM1 processors up to 100 W.
The motherboard provides four USB 3.0 ports.
The board can accommodate up to 16 GB of DDR3 memory.
