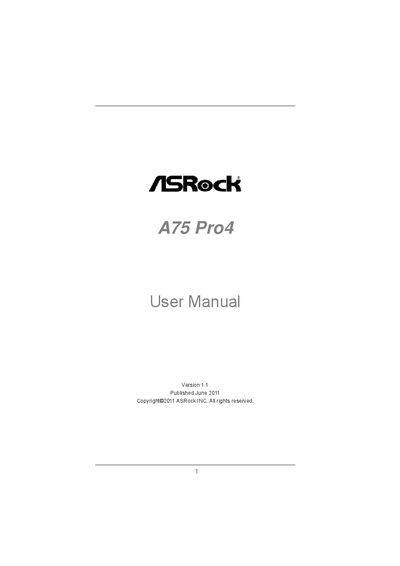

ASRock A75 Pro4 User Manual, introduce the features and characteristics of the product
This manual introduces the ASRock A75 Pro4 motherboard, outlines the package contents, and guides users through hardware installation steps such as CPU, memory, and expansion cards. It also covers BIOS (UEFI) configuration, software support, and troubleshooting information.
Key sections include detailed specifications, UEFI Setup Utility navigation, driver and utility installation from the Support CD, and procedures for installing Windows on large‑capacity hard drives. The document also lists the motherboard’s connectivity options, audio and networking features, and safety warnings.
| Form Factor | ATX (12.0‑in x 8.8‑in) |
|---|---|
| CPU Socket | Socket FM1 (100W processors) |
| Chipset | AMD A75 FCH (Hudson‑D3) |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory | 32 GB |
| PCI Express Slots | 2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 3 x PCI |
| Graphics Support | AMD Radeon HD 65XX/64XX, D‑Sub/DVI‑D/HDMI outputs |
| Audio Codec | Realtek ALC892 (7.1 CH HD Audio) |
| LAN Controller | Realtek RTL8111E Gigabit LAN |
| SATA3 Connectors | 5 x SATA3 6.0 Gb/s (RAID, AHCI, Hot Plug) |
| USB 3.0 Ports | 4 x USB 3.0 |
| USB 2.0 Ports | 2 x USB 2.0 (ready‑to‑use) |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, XP SP3 and XP 64‑bit.
It provides five SATA3 6.0 Gb/s connectors with RAID, AHCI and Hot‑Plug support.
The board can accommodate up to 32 GB of DDR3 memory.
It uses the standard ATX form factor measuring 12.0 in × 8.8 in.
