The ASRock A55M-HVS motherboard is powered by the AMD A55 FCH chipset, supports the FM1 socket 100W processor, supports dual-channel DDR3 memory technology, and supports a maximum system capacity of 16GB.

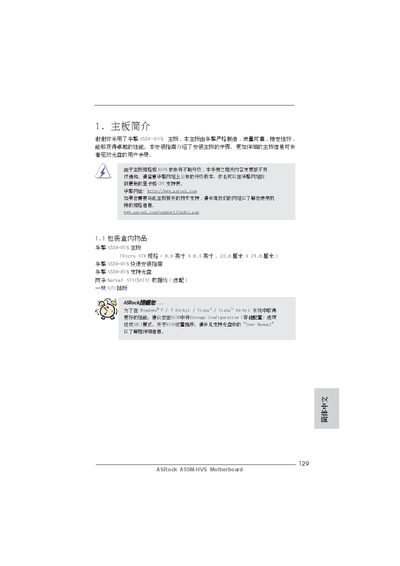

This guide introduces the ASRock A55M-HVS Micro‑ATX motherboard, its key features, and the steps required to install it safely. It also points to the driver CD for more detailed information and advises checking the ASRock website for BIOS and driver updates.
The document covers hardware specifications, rear I/O layout, jumper settings, BIOS update tools, and environmental compliance information, helping users configure the board for Windows operating systems and ensure proper power and fan connections. This manual is written in Chinese.
| CPU socket | FM1 (supports up to 100 W processors) |
|---|---|
| Chipset | AMD A55 FCH (Hudson‑D2) |
| Expansion slots | 1 × PCIe x16, 1 × PCIe x1, 1 × PCI |
| SATA ports | 6 × SATA2 (3.0 Gb/s) connectors, RAID 0/1/10 support |
Set the Storage Configuration option in the BIOS to AHCI mode.
