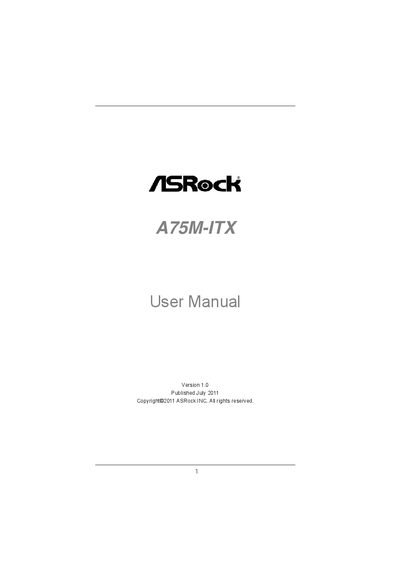

This document is the user manual for ASRock A75M-ITX motherboard, which describes the features and characteristics of the motherboard.
This manual introduces the ASRock A75M-ITX Mini‑ITX motherboard, detailing its features, package contents, and hardware specifications. It also explains the step‑by‑step installation process, BIOS (UEFI) configuration, and the use of the Support CD.
Later sections cover software support, operating‑system installation on large hard drives, and safety warnings. The document includes detailed diagrams of the rear I/O, connector pin‑outs, and troubleshooting tips for end users and system builders.
| Form Factor | Mini‑ITX 6.7" x 6.7" |
|---|---|
| CPU Socket | Socket FM1 (100W) |
| Chipset | AMD A75 FCH (Hudson‑D3) |
| Memory Slots | 2 x DDR3 DIMM |
| Maximum Memory | 16 GB |
| PCI Express Slot | 1 x PCIe 2.0 x16 |
| Integrated Graphics | AMD Radeon HD 65XX/64XX |
| SATA3 Connectors | 4 x 6.0 Gb/s |
| USB 3.0 Ports | 4 |
| LAN | Gigabit Ethernet (PCIe x1) |
| HDMI Port | 1 x HDMI |
| BIOS | 32 Mb AMI UEFI with GUI |
| Certifications | FCC, CE, WHQL |
It supports Microsoft Windows 7/64‑bit, Vista/64‑bit, Windows XP SP3 and Windows XP 64‑bit.
The board includes four USB 3.0 ports.
The maximum supported memory is 16 GB.
Yes, it provides one HDMI port on the rear I/O panel.
