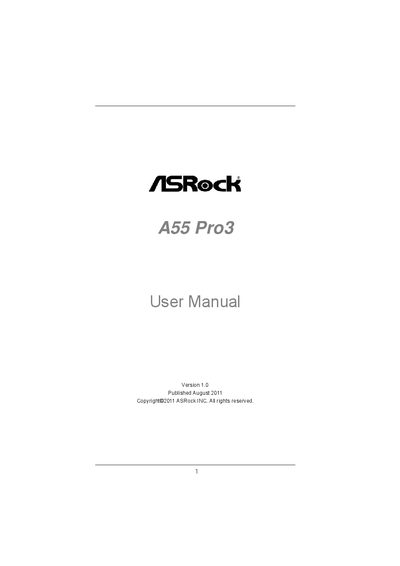

ASRock A55 Pro3 Motherboard User Manual

This document is the user manual for the ASRock A55 Pro3, providing specifications and information about the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 69
File format: PDF
File size: 1.7 MB
Published: 15 March, 2012
Updated: 28 September, 2023
Model: A55
MD5 checksum: 37E81DE004F278C4BE367391D545BF93
PDF: ASRock A55 Pro3 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock A55 Pro3 motherboard, covering package contents, specifications, and layout. It guides users through hardware installation, BIOS configuration, and software support.

Key sections include detailed steps for CPU and memory installation, expansion slot usage, SATA and USB connections, as well as UEFI setup, BIOS features, and troubleshooting tips.

What's inside

Introduction
Specifications
Motherboard Layout
I/O Panel
Installation
UEFI Setup Utility
BIOS Feature
Software Support
Audio
Expansion Slots

Specifications

Form Factor	ATX (12.0" x 8.6")
CPU Socket	Socket FM1 (100W processors)
Memory Slots	4 DDR3 DIMM slots
Maximum Memory	32 GB
PCI Express Slots	2 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 3 x PCI
Graphics Support	AMD Quad CrossFireX, CrossFireX, Dual Graphics
SATA Ports	2 x SATA3 6 Gb/s, 5 x SATA2 3 Gb/s
USB Ports	2 x USB 3.0, 4 x USB 2.0
Video Outputs	1 x HDMI, D‑Sub ports

Frequently asked questions

What CPU socket does the ASRock A55 Pro3 motherboard use?

It supports Socket FM1 processors.

How many DDR3 memory slots are available and what is the maximum memory capacity?

The board has four DDR3 DIMM slots with a maximum capacity of 32 GB.

Which graphics configurations are supported by this motherboard?

It supports AMD Quad CrossFireX, CrossFireX, and Dual Graphics.

What type of USB ports are provided on the A55 Pro3?

The motherboard includes two USB 3.0 ports and four USB 2.0 ports.
