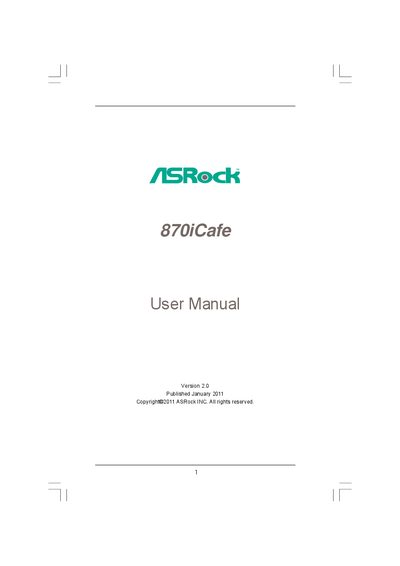

870iCafe user manual, this manual provides detailed introduction of 870iCafe's features and usage methods
This manual covers the ASRock 870iCafe ATX motherboard, detailing package contents, hardware installation steps, and connector descriptions. It includes guidance for CPU, memory, expansion slots, SATA3 drives, and peripheral connections.
The document also explains UEFI BIOS configuration, driver and utility installation from the support CD, supported operating systems, and special features such as CrossFireX, over‑clocking options, and large‑disk installation procedures.
| Form Factor | ATX, 12.0" x 8.2" (30.5 cm x 20.8 cm) |
|---|---|
| CPU Socket | Socket AM3+ (supports AMD Phenom II, Athlon II, Sempron) |
| Memory Slots | 4 DDR3 DIMM slots, up to 32 GB |
| SATA3 Connectors | 5 × SATA3 6.0 Gb/s, RAID 0/1/0+1/5, AHCI, Hot Plug |
| Audio Codec | Realtek ALC887, 7.1‑channel HD Audio |
| LAN | Gigabit Ethernet (Realtek RTL8111E), 10/100/1000 Mb/s |
It supports Windows 7/7 64‑bit, Windows Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
