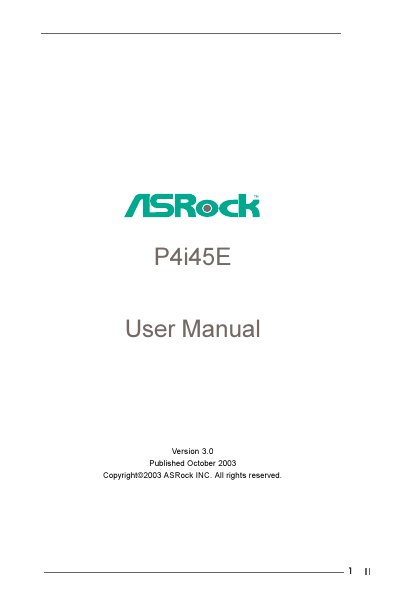

ASRock P4i45E Motherboard User Manual

This document is the user manual for ASRock's P4i45E motherboard, describing the features and characteristics of the motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 31
File format: PDF
File size: 739 KB
Published: 15 March, 2012
Updated: 28 September, 2023
MD5 checksum: 411C8CBF335319871037D7A7F7B030DF
PDF: ASRock P4i45E Motherboard User Manual PDF

About this manual

This manual introduces the ASRock P4i45E ATX motherboard, lists the package contents, and details the hardware layout, including CPU socket, memory slots, and I/O connectors. It also provides the full specifications such as supported processors, chipset, memory types, and peripheral interfaces.

The guide walks users through installation procedures, BIOS setup options, and software support, including how to set passwords, configure power management, and use the support CD. An appendix offers advanced BIOS menus for security, power, boot, and exit settings.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup
Software Support
Advanced BIOS Setup
Security Setup
Power Setup

Specifications

Form Factor	ATX (12.0" x 7.0")
CPU Socket	Socket 478 for Intel Pentium 4 / Celeron
Memory Slots	2 DDR DIMM slots (DDR1/DDR2)
USB Ports	4 rear USB 2.0 ports + header for 2 additional ports
LAN	10/100 Ethernet (802.3u) with Wake‑On‑LAN
Audio	5.1‑channel AC’97 audio

Frequently asked questions

How many USB 2.0 ports are available on the motherboard?

There are four rear USB 2.0 ports and a header that can add two more USB 2.0 ports.

How can I set a supervisor password in the BIOS?

Select the Supervisor Password field, press , and enter a 1‑to‑6 character alphanumeric password.

Download PDF (739 KB)
