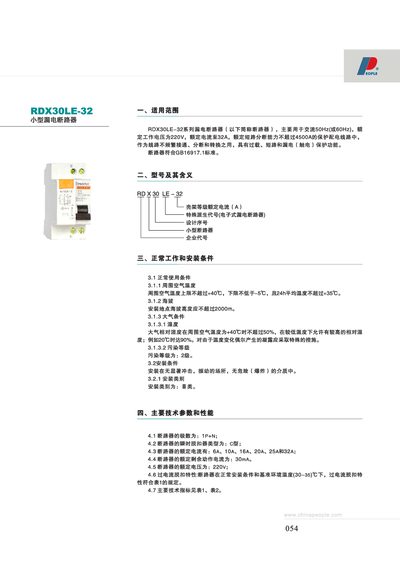

The RDX30LE-32 series small leakage breaker is intended for AC 50 Hz (or 60 Hz) distribution circuits with a rated voltage of 220 V and rated current up to 32 A. It offers overload, short‑circuit, and residual‑current protection and complies with GB16917.1.
The manual lists the device’s technical parameters, environmental limits (temperature +40 °C to –5 °C, average ≤ +35 °C, altitude ≤ 2000 m, pollution grade 2), installation guidelines, and ordering requirements such as model, rated current, and quantity. This manual is written in Chinese.
| Rated voltage | 220 V |
|---|---|
| Rated current options | 6 A, 10 A, 16 A, 20 A, 25 A, 32 A |
| Rated residual operating current | 30 mA |
| Number of poles | 1P+N |
| Instantaneous tripping type | C‑type |
| Maximum short‑circuit breaking capacity | ≤ 4500 A |
| Maximum installation altitude | 2000 m |
| Pollution grade | 2 |
The breaker is rated for 220 V.
It is available in 6 A, 10 A, 16 A, 20 A, 25 A and 32 A versions.
The device can break short‑circuit currents up to 4500 A.
