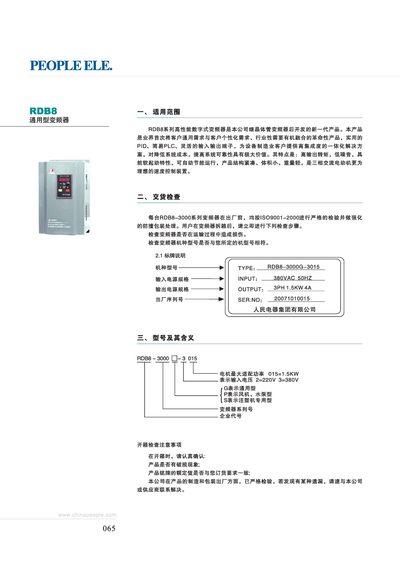

This manual covers the RDB8 series general‑purpose variable frequency drive, describing its applicable range, delivery inspection steps, and model designation. It includes detailed technical specifications, wiring diagrams, terminal functions, and environmental requirements for proper installation.
The document also explains how to operate the drive, set parameters, handle fault codes, and perform maintenance. Dimensional data and mounting guidelines are provided for both floor‑standing and cabinet installations. This manual is written in Chinese.
| Input Voltage | 380 V AC 50 Hz |
|---|---|
| Output Power Rating | 1.5 kW (3‑phase) |
| Carrier Frequency (P0.00) | 5000 Hz (range 1000–9999 Hz) |
| Base Frequency (P0.03) | 50 Hz (range 40.0–400.0 Hz) |
| Undervoltage Protection (P4.00) | Enabled |
Inspect the unit for transport damage and verify that the model number matches the ordered type.
The drive is rated for 380 V AC at 50 Hz.
Apply the RST signal; the drive will not reset if the fault cause has not been cleared.
