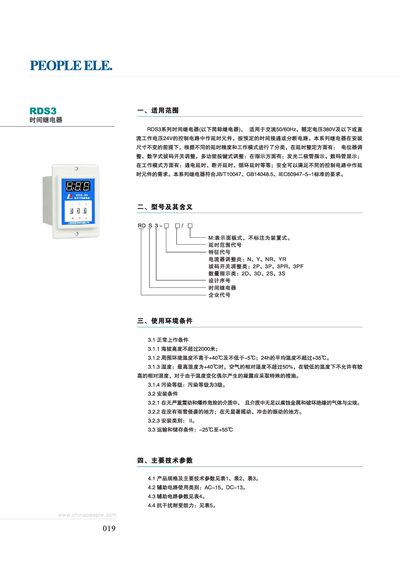

This document describes the PEOPLE ELE RDS3 series of time relays, covering general features, model designations, and technical parameters. It lists the various variants (RDS3‑Y, RDS3‑N, etc.) and their electrical ratings.
Installation guidelines, environmental limits, and wiring details are provided, along with tables of rated voltage, current, contact capacity, and mechanical life. The manual also includes safety notes and compliance references. This manual is written in Chinese.
| Rated voltage | 220 V |
|---|---|
| Rated current | 0.75 A |
| Contact capacity | AC 220 V, 5 A |
| Mechanical life | 1×10 cycles |
| Operating temperature range | -25 °C to +55 °C |
| Control input voltage | DC 24 V |
The RDS3 relay can operate from –25 °C up to +55 °C.
The series is rated for 220 V and a current of 0.75 A.
It accepts a 24 V DC control voltage (also 24 V AC in some models).
Install the relay in dry, non‑corrosive locations, away from rain and strong vibrations.
