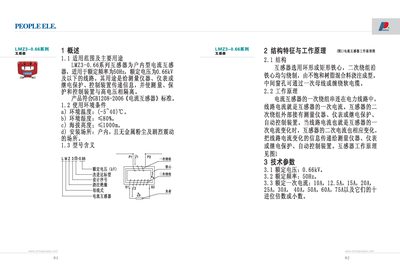

PEOPLE LMZ3-0.66 Transformer Manual

Brand: PEOPLE
Category: Other
Document type: User Manual
Language: Chinese
Pages: 3
File format: PDF
File size: 1.3 MB
Published: 15 March, 2012
Updated: 31 March, 2012
MD5 checksum: C91CC31DD5A51B13B4F64AE654A42F96
PDF: PEOPLE LMZ3-0.66 Transformer Manual PDF

About this manual

This manual describes the LMZ3-0.66 series current transformer, including its structure, working principle, and technical parameters such as rated voltage, frequency, and secondary current. It also details the dimensions, installation methods, and polarity markings for proper wiring.

Additional sections cover transport and storage precautions, warranty conditions, and ordering requirements, helping users ensure safe handling, reliable performance, and proper after‑sales support. This manual is written in Chinese.

What's inside

Overview
Structure and Working Principle
Technical Parameters
Dimensions and Installation
Installation Guidelines
Operation
Transport and Storage
Warranty and Service
Ordering Information

Specifications

Rated Frequency	50 Hz
Rated Voltage	0.66 kV
Rated Secondary Current	5 A
Rated Output (VA)	2.5 VA, 5 VA, 10 VA, 15 VA
Secondary Load Power Factor	0.8 lagging

Frequently asked questions

What is the rated secondary current of the LMZ3-0.66?

The LMZ3-0.66 series has a rated secondary current of 5 A.

What is the power factor of the secondary load?

The secondary load power factor is 0.8 lagging.
