The People LMZ(J)1-0.66 series current transformer is an indoor‑type device designed for 50 Hz, 0.66 kV or lower line voltages. It transmits measurement, protection and control signals while isolating high‑voltage circuits.

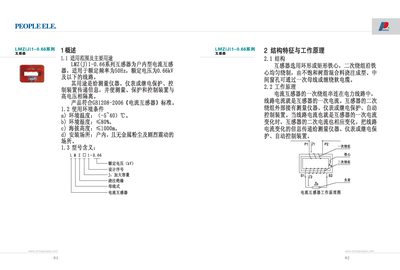

The manual provides technical parameters, mechanical dimensions, installation steps, operating instructions, transport and storage guidelines, warranty terms and ordering information. This manual is written in Chinese.
| Rated voltage | 0.66 kV |
|---|---|
| Rated frequency | 50 Hz |
| Rated primary current | 10 A, 12.5 A, 15 A, 20 A, 25 A, 30 A, 40 A, 50 A, 75 A |
| Rated secondary current | 1 A, 5 A |
| Secondary load (VA) | 2.5 VA, 5 VA, 10 VA, 15 VA, 20 VA |
| Accuracy class | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| Insulation resistance | ≥5 MΩ |
The transformer is offered with primary currents of 10 A, 12.5 A, 15 A, 20 A, 25 A, 30 A, 40 A, 50 A and 75 A.
It must be installed horizontally and fixed to the primary busbar with the supplied fixing screws.
