Hisense air conditioner user manual includes machine features, precautions, air conditioner composition, operation guide, maintenance and cleaning, fault countermeasures, refrigerant circulation chart, packing list, installation instructions and other content

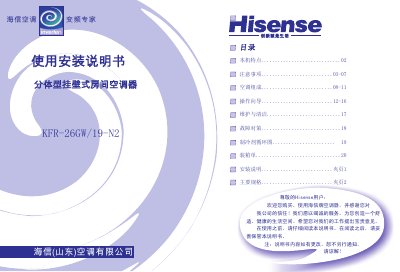

The manual explains how to install, connect, and commission the Hisense KFR-26GW/19-N2 split‑type wall‑mounted air conditioner. It includes product features, safety warnings, and a step‑by‑step installation procedure for both indoor and outdoor units.
Key sections cover safety warnings, required tools, site preparation, pipe and electrical connections, refrigerant charging, test run, and maintenance tips. Technical specifications and compliance information are listed at the end of the document. This manual is written in Chinese.
| Cooling/Heating capacity (W) | 2600/2900 |
|---|---|
| Indoor unit dimensions (mm) | 760×255×540 |
| Power supply | 220V~/50Hz IPX4 |
The installation site must have reliable electrical grounding, only qualified electricians may perform wiring, power must be disconnected before any work, and the unit must be kept away from combustible materials and water.
The maximum refrigerant pipe length is between 7.5 m and 15 m, with a standard of 15 g per meter of refrigerant for that length.
Press the timer button on the remote, then use the up/down keys to set the desired on/off time within a 24‑hour range.
