Sloan Royal 152 WB ESS sensor flush valve is suitable for rear-fed toilets. It has low noise, concealed type, diaphragm structure and other features.
The Sloan Royal 152 WB ESS rinse valve is a low‑noise, dual‑DC device with a built‑in indicator lamp and a 3‑second delayed flush function. It complies with ASTM brass alloy standards and ASSE1037, ANSI/ASME 112.19.2, and CJ/T 194‑2004 specifications.

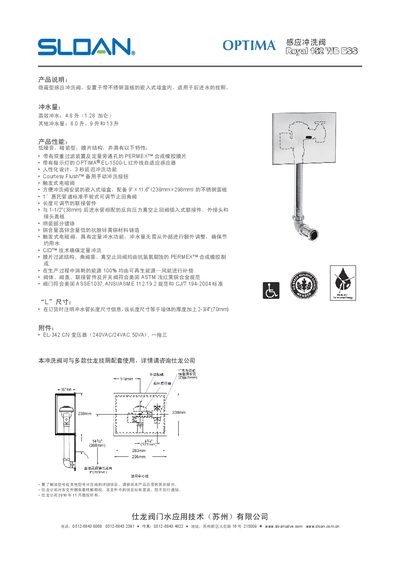

The manual details the valve's dimensions (9" × 11.6" panel), water flow rates (4.8 L/min standard, optional 6.0, 9.0, 13.0 L/min), installation requirements, and electrical data for the optional EL‑342 transformer (240 VAC / 4 VAC / 50 VA). It also includes compliance notes and contact information for Sloan. This manual is written in Japanese.
| Standard water flow rate | 4.8 L/min |
|---|---|
| Optional water flow rates | 6.0 L/min, 9.0 L/min, 13.0 L/min |
| Panel dimensions | 9" × 11.6" (238 mm × 298 mm) |
| Valve inlet size | 1 in |
| Transformer rating (optional) | 240 VAC / 4 VAC / 50 VA |
The standard water flow rate is 4.8 L/min.
Optional flow rates are 6.0 L/min, 9.0 L/min, and 13.0 L/min.
The panel measures 9" × 11.6" (238 mm × 298 mm).
It is rated at 240 VAC, 4 VAC, and 50 VA.
