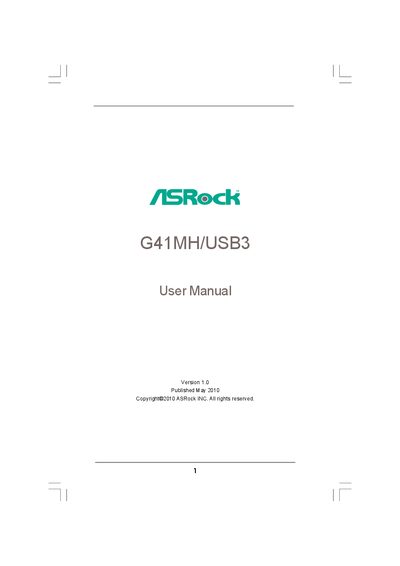

G41MH/USB3 User Manual, including product introduction, specifications, installation instructions, etc.
This manual guides users through hardware installation, BIOS configuration, and software support for the ASRock G41MH/USB3 motherboard. It includes safety notices, package contents, and detailed diagrams of the rear panel and motherboard layout.
Key sections cover specifications, CPU and memory installation, expansion slot usage, BIOS setup utility, and instructions for using the support CD. The document also lists supported operating systems, USB ports, SATA connectors, and other onboard features.
| Form Factor | Micro ATX (9.6‑in x 8.4‑in, 24.4 cm x 21.3 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel® Core™ 2, Pentium® Dual Core, Celeron® Dual Core |
| Chipset | Northbridge Intel® G41, Southbridge Intel® ICH7 |
| Expansion Slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI |
| Graphics | Intel® Graphics Media Accelerator X4500 |
| Audio Codec | Realtek ALC662 5.1 CH HD Audio |
| LAN | Realtek RTL8111E Gigabit LAN (10/100/1000 Mb/s) |
| USB Ports | 3 × USB 2.0, 1 × USB 3.0 |
| SATA Connectors | 4 × SATAII 3.0 Gb/s |
It supports Microsoft Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, XP, and XP 64‑bit.
The board provides three USB 2.0 ports and one USB 3.0 port.
