ASRock G41M-PS motherboard is a motherboard product launched by ASRock. It uses Intel G41 chipset and supports LGA775 interface Intel Core 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron series processors. The maximum memory supported is 8GB, and the expansion interfaces include 1 PCI-E x16, 1 PCI-E x1, 2 PCI and 4 SATAII interfaces.
The ASRock G41M-PS motherboard is a Micro ATX board featuring an Intel G41 northbridge, ICH7 southbridge, and support for LGA 775 Intel processors. It provides dual DDR3 DIMM slots (up to 8 GB), multiple SATA2 connectors, PCI Express slots, and integrated graphics.

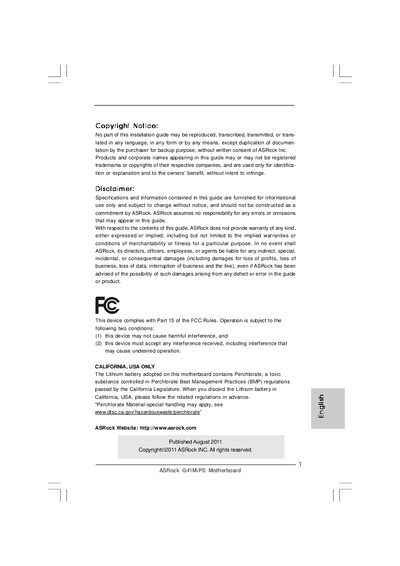

This Quick Installation Guide covers package contents, motherboard layout, connector locations, BIOS features, and over‑clocking utilities. It also includes safety warnings, FCC/CE certifications, and links to additional support resources on the ASRock website.
| Form Factor | Micro ATX (9.6 in x 7.5 in) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core 2 Extreme / Quad / Duo, Pentium Dual Core, Celeron |
| Chipset | Intel G41 northbridge, Intel ICH7 southbridge |
| Memory Slots | 2 × DDR3 DIMM (dual channel) |
| Maximum Memory | 8 GB |
| Supported Memory Speeds | DDR3‑1333, DDR3‑1066, DDR3‑800 |
| Expansion Slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI |
| SATA Connectors | 4 × SATA2 (3 Gb/s) – no RAID or hot‑plug |
| LAN | Gigabit Ethernet (Atheros AR8151) with Wake‑On‑LAN |
It uses an LGA 775 socket for Intel processors.
The motherboard provides two DDR3 DIMM slots.
The board can support up to 8 GB of DDR3 memory.
Yes, it features an Atheros AR8151 Gigabit LAN controller with Wake‑On‑LAN support.
