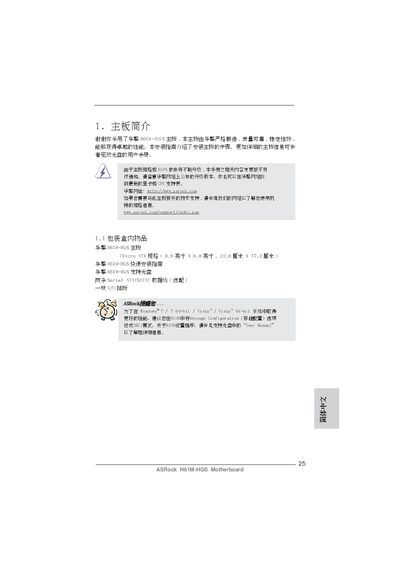

ASRock H61M-HGS Installation Guide

ASRock H61M-HGS motherboard user manual, introduces the specifications, features and usage of the motherboard.

Brand: ASRock
Category: Motherboard
Document type: Installation Guide
Language: Chinese
Pages: 11
File format: PDF
File size: 337 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: H61M-HGS
MD5 checksum: C2195E26DD1A9FACA7816BB9A4558099
PDF: ASRock H61M-HGS Installation Guide PDF

About this manual

This guide introduces the ASRock H61M-HGS micro ATX motherboard, covering its features, supported CPUs, memory, and connectivity. It also explains how to install the board, connect cables, configure jumpers, and update the BIOS.

Key sections include board specifications, onboard connectors, jumper settings, BIOS access, and environmental compliance details, helping users complete a proper installation and configure the system for optimal performance. This manual is written in Chinese.

What's inside

Introduction
Specifications
Onboard Connectors and Interfaces
Jumpers Configuration
BIOS Information
Environmental Compliance

Specifications

Storage interfaces	4 × SATA2 (3.0 Gb/s) ports
Audio	5.1‑channel high‑definition audio (YIA VYT1705 codec)
LAN	Realtek RTL8111E Gigabit Ethernet

Frequently asked questions

What audio codec does the motherboard use for its 5.1‑channel audio?

It uses the YIA VYT1705 audio codec for 5.1‑channel high‑definition audio.
